Transducers and Instrumentation

Loop Isolator—Analog

Universal signal conditioning module features 3-way isolation of analog signals and over 100 input and output analog conversion combinations. Power requirements: 11–36VDC, 3W max. or 24VAC, 50/60Hz, 4.8VA max, UL-recognized. (PN IT475)

product image

Loop Isolator

Passive loop isolator, loop powered, Non-adjustable range/span, 0–20mA. Standard DIN rail mounting, slim 1/4” width. (PN IT476)

product image

Rain Tipping Bucket

Corrosion resistant rainfall measuring device records rainfall measurements in 0.01” of rainfall. NOAA compliant. Requires Safe Module Plus (PN OP750). Rain tipping buckets must be level for accuracy. Refer to Rainfall Kit—MyDro-AC (PN KT278-SMP) for rainfall kit containing a mounting stand. (PN IT251)

product image

Surge Suppressor—Analog

Surge suppressor for use with 4–20 mA loop circuits, 24V nominal line voltage. Replacement for surge suppressor included with non-submersible pressure transducer.

product image

Transducer—Current

Converts AC current draw to a 4–20mA signal. Switchable current ranges (0–30, 0–60, 0–120amps); 4–20 mA out-
put, 30mA (max. draw) at 12–30 VDC sensor power, 5–140° F temp range, UL-listed. (PN IT484)

product image

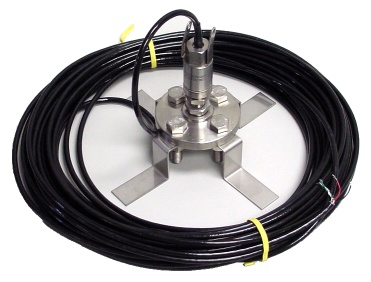

Transducer — Level, 0–15 ft, 40-ft Cable

Submersible, loop-powered, 2-wire transducer; 4–20 mA DC output over 0–6.5 PSI span (0–15 ft); 40-ft signal cable; Includes: sealed breather system and integral surge protector (PN IT470-1)

product image

Transducer — Level, 0–23 ft, 40-ft Cable

Submersible, loop-powered, 2-wire transducer; 4–20 mA DC output over 0–10 PSI span (0–23.1 ft); 40-ft signal cable; Includes: sealed breather system and integral surge protector (PN IT470-2)

product image

Transducer — Level, 0–23 ft, 65-ft Cable

Submersible, loop-powered, 2-wire transducer; 4–20 mA DC output over 0–10 PSI span (0-23.1 ft); 65-ft signal cable; Includes: sealed breather system and integral surge protector (PN IT470-3)

product image

Transducer — Level, 0–23 ft, 55-ft Cable

Submersible, loop-powered, 2-wire transducer; 4–20 mA DC output over 0–6.5 PSI span (0-15 ft); 65-ft signal cable; Includes: sealed breather system and integral surge protector (PN IT470-4)

product image

Transducer — Level, 0–15 ft, 65-ft Cable

Submersible, loop-powered, 2-wire transducer; 4–20 mA DC output over 0–6.5 PSI span (0-15 ft); 65-ft signal cable; Includes: sealed breather system and integral surge protector (PN IT470-5)

product image

Transducer—Pressure, 0–15psi

316 stainless steel, non-submersible pressure transducer for use with ground tanks or water line pressure. 4–20mA, 0–34.65’ range, 18” cable. 0.20% accuracy, calibrated to produce industry-standard electrical outputs. Includes surge suppressor. (PN IT477S)

product image

Transducer—Pressure, 0–30psi

316 stainless steel, non-submersible pressure transducer for use with elevated tanks or water line pressure. 4–20mA, 0–69.3’ range, 18” cable. (PN IT465S)

product image

Transducer—Pressure, 0–75psi

316 stainless steel, non-submersible pressure transducer for use with elevated tanks or water line pressure. 4–20mA, 0–173.25’ range, 18” cable. (PN IT472S)

product image

Transducer—Pressure, 0–50psi

316 Stainless steel, non-submersible pressure transducer for use with elevated tanks or water line pressure. 0–5V, 0–173.25’ range, 18” cable. Recommended for solar applications. Includes surge suppressor. (PN IT471S)

product image

Transducer—Pressure, 0–150psi

316 Stainless steel, non-submersible pressure transducer for use with elevated tanks or water line pressure. 4–20 mA, 0–346.5’ range, 18” cable. 0.20% accuracy, calibrated to produce industry standard electrical outputs. Includes surge suppressor. (PN IT473S)

product image
