MISSION's high reliability RTU circuitry comes in a wide variety of packages to suit the installation requirements.


MISSION Model 80 In-Sewer Sewer Overflow Detector

M80The MISSION Model 80 is complete overflow condition transmitter designed to be installed in Combined Sewer Overflow (CSO) and Sanitary Sewer Overflow (SSO) locations.  It uses third-geneation cellular service to track conditions and send alarms to personnel regarding the time and duration of manhole surcharges and overflows.  The complete package includes M80 sealed transmitter with 5-year sealed battery, two floats, and proprietary in-road antenna.

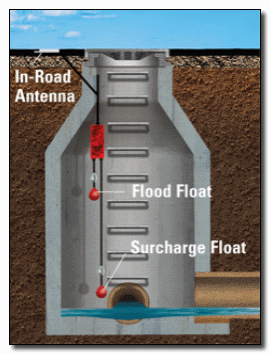

A typical M80 installation is shown below.  The M80 is simply hung from a convenient area near the manhole (no confined-space entry is required).  The floats hang down to levels in the manhole, one at a "surcharge" level and one at a pre-flood levels.  Flows exceeding system capacity tip the float and the M80 transmits an alarm message using the in-road antenna.  Notifications are then sent out to the selected call-out list. Sewer DIagram



Feature Benefit
Wireless SSO/CSO reporting system No power or phone lines to install
Installs from the surface Confined-space-entry permit not required
Electronics, radio and battery are conformal coated, sealed, and UL approved.  Exposed hardware is 316 stainless steel Corrosion resistant, "set it and forget it"
Includes level floats and 5-year battery Nothing else to buy
Test messages sent every 3 days. Documents cellular channel signal strength and battery level
