MyDro 50

The Perfect Fit to Monitor Water Pressure, Levels, and More

The Mission MyDro 50 is designed for monitoring pressure, rainfall, and level readings anywhere on your utility map. With an extended battery life, cellular connectivity, small footprint, and low cost, the versatile MyDro 50 can fill any blind spot in your water system, delivering key measurements to your computer, phone, or tablet. Available in wall mount (IP68 rated) and node (IP67 rated) enclosures.

 Performance Features:

  • Easy Install: All necessary hardware included, no programming required, RTUs are self enrolling.
  • Secured Data Connectivity: Multiple carriers supported (including AT&T, Verizon, T–Mobile, and others) with no cellular contracts to set up.
  • Alarm/Event Reporting: Within two minutes, including email, text message, voice call, and others.
  • Long Battery Life: Up to five years of worry–free operation, no AC wiring required.
  • Robust: Designed to withstand harsh conditions.
  • Weather Resilience: Uninterrupted cellular connection, even during rain events or bad weather.
  • Data Integrity: Provides precise and reliable readings through entire operating range.
  • Communication Features: Network details, transmit and receive specifications.
  • Two–Way Communication: Enables remote settings management for enhanced control.
  • Managed Service—The Complete Package: Data storage, customizable alarm schedule, reports, and 24/7/365 technical support.
  • Sensor Power: Able to power the connected level and pressure sensors.

_______________________________________________________________________________________________________

MyDro 50 Videos:

_______________________________________________________________________________________________________


Applications for the MyDro 50
  • Rainfall Monitoring
  • Pressure Relief & Pressure Reducing Valve Monitoring
  • Aquifer Level Monitoring
  • Reservoir Level Monitoring

Wall Mount (M52) Installation Manual

Node (M54) Installation Manual

Rainfall Monitoring (M54R) Installation Manual


Download Product Data Sheet

Technical Specifications

Battery Pack: Four D-cell lithium thionyl chloride, 76AHr

Inputs and Output

  • 1 latching relay output (2A @ 30Vdc; 0.3A @110Vac; 5A @125Vac)
  • 3 digital inputs report state, total counts
  • 3 analog inputs (passive or active): 4-20mA, 0-5V
  • 13V or 18V provided to attached sensor(s). Maximum current of 60mA

Environmental Considerations

  • Operating temp: -40 to +185°F (-40 to 85°C)
  • Humidity: 0% - 100% condensing

Data Interface

  • LTE CAT M1 / NB-IoT, auto-selectable
  • SparkPlug B messaging

Cellular Specifications

  • SIM included
  • Power saving features: via eDRX
  • PTCRB certified

Safety Rating:

  • Class 1 Division 2 Certified, Groups A, B, C, D.
  • Temperature Code T5.
  • Certified to CSA C22.2 No. 213:2017
  • Conforms to UL 121201:2017
  • CE Approved

Electrical Connection: Pluggable terminal block 16-30AWG screw terminals

Wall Mount (M52)

Enclosure: Industrial polycarbonate UV Rated, IP68

Weight with Battery: 2 lbs, 15oz

Node (M54)

Enclosure: Industrial polycarbonate UV Rated, IP67

Weight with Battery: 2 lbs

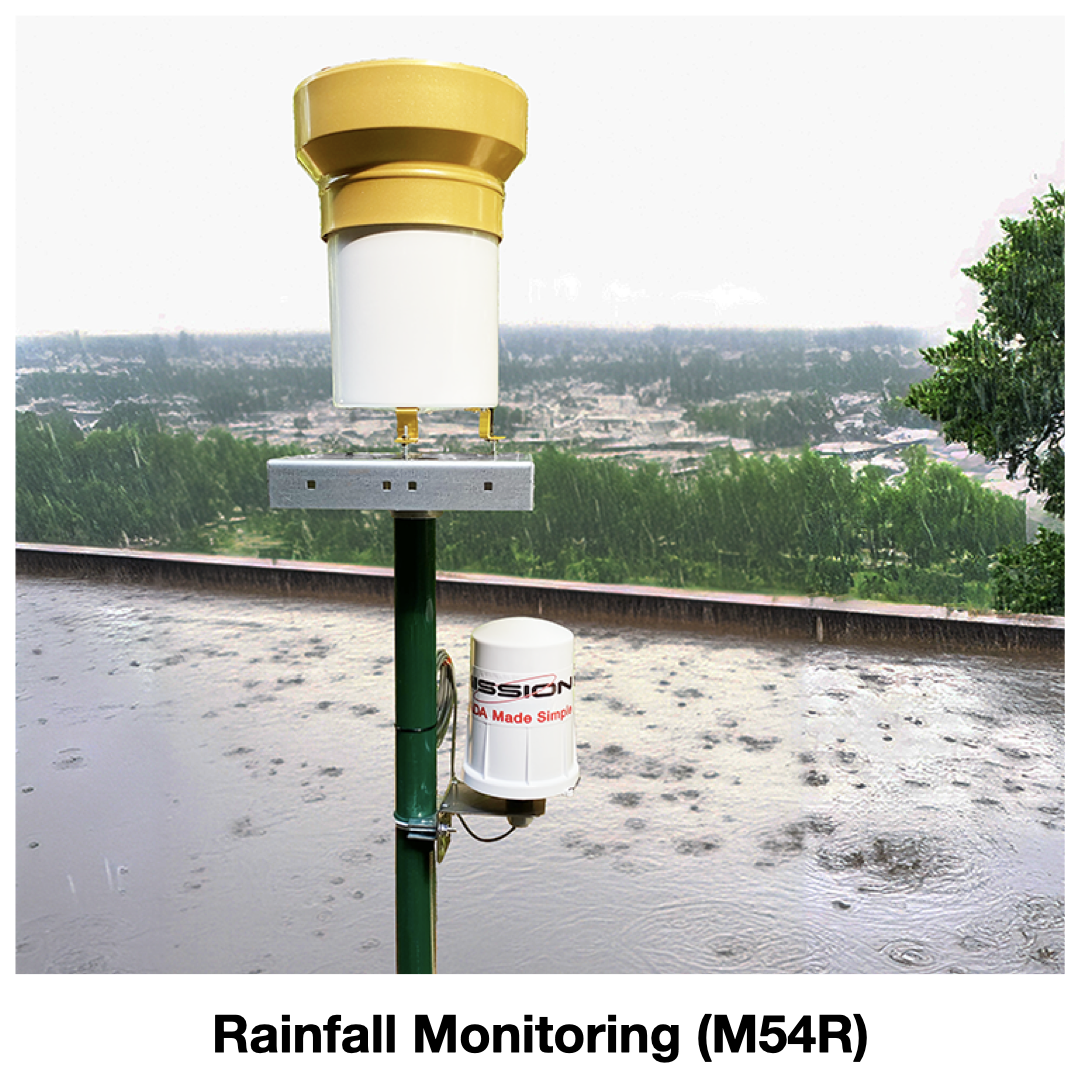

M54R Rainfall Monitoring (M54R)

Enclosure: Industrial polycarbonate UV Rated, IP67

Digital Inputs: Two digital inputs—dry contact for tipping bucket—reports on state change

Weight with Battery: 2 lbs

Dimensions: Height: 7.1 in (198 mm), diameter 4.6 in (102 mm)

Included with the MyDro 54R RTU:

  • Rain tipping bucket with cable
  • Mounting plate with screws
  • U–clamp and mounting bracket
  • Base stand
