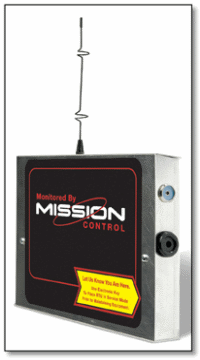

M110

Wireless Real-Time Alarm System

The M110 is the lowest-cost remote terminal unit (RTU) and is appropriate for the typical sewer lift station. Purpose-built RTUs speed and simplify installation. Each M110 is a complete wireless monitoring system. It includes the necessary hardware for installation, including:

  • Cellular radio
  • Enclosure
  • Backup battery
  • Transformer
  • Antenna with cable
  • Mounting hardware

Customers can upgrade to the latest capabilities with the MyDro 150. This RTU includes all of the M110 functionality and adds an LCD touch screen display and advanced electronics. If users need analog trending data and real-time pump state changes for master lift stations, the M800 or MyDro 850 systems are ready for the job.

View the comparison chart here.

Features:

Reliable Wireless Communications

RTUs operate on current generation (2G, 3G, and 4G) cellular radios for dependable data transmissions. Mission maintains direct relationships with the largest cellular carriers in the U.S. and Canada to ensure the best service possible. There are no radios to program, no cellular contracts to set up, and no radio licenses to purchase and maintain.

Reactive Alarms and Proactive Alerts

Real-time alarms are dispatched based on a customized call-out schedule. Alerts proactively notify users of possible issues like excessive pump starts or runtimes.

Mission-Managed Service

Mission-managed SCADA is a turnkey system delivered through a Software as a Service (SaaS) model that enables customers to gain complete system monitoring. Mission provides and maintains everything users need to drive their systems.

Robust and Secure Web Portal

The state-of-the art 123SCADA web portal automatically adapts to large monitors, tablets, and smartphones, with a dashboard window conveniently displaying all necessary information.

To learn more about Mission-managed services, download the Managed SCADA brochure.

product image
product image
product image
product image
product image
product image
Wastewater
  • Lift stations monitoring
  • Forced main (master) pump stations monitoring
  • Low pressure sewer grinder pump monitoring
  • Industrial water quality discrete monitoring with alarms
  • Flow monitoring with pulse
Water
  • Tank monitoring without trending
  • Well monitoring without trending
  • Pressure reducing valve (PRV) monitoring without trending
  • Flow monitoring with pulse
  • Booster pump station monitoring
  • Water quality monitoring with discrete alarms
Download Product Data Sheet

Technical Specifications

Hardware:
  • 8 supervised digital inputs: 3 configurable to runtime/starts accumulators; option board expands digital inputs to 16
  • 2 analog inputs: 4–20 mA or 0–5 VDC, 10-bit resolution, 4 real-time alarm set points per input; option board expands analogs to 6
  • 4 built-in alarms: AC, low battery, temperature, and communications fail
  • 1 electronic key reader for site activity tracking and service mode
  • 3 remotely controllable, form C dry contact relay outputs (1 amp at 12 VDC), SPDT, N/O or N/C
  • Supervised 120 VAC to 12 VAC, 1.2 A power supply with UL-recognized class II/class III transformer
  • 5 Ah battery provides up to 40 hours of backup power
  • Includes antenna kit (PN R8005) with mounting bracket and 11 ft of cable; omnidirectional outdoor antenna can be wall- or pole-mounted
  • 8 vertical LEDs for diagnostics
  • 8 digital input LEDs display input status and wiring faults
  • RJ45 connection for optional Wet Well Module (PN 651)
Radio:
  • Units automatically self-enroll with no startup delays; radios make live, continuous, encrypted socket connections and all data and alarms are end-to-end acknowledged; Mission does not use SMS text messaging to transmit RTU data
  • AT&T, Verizon, and Sprint radios have 128-bit encryption; all use TCP data transmission protocol
  • GSM: HSPA+ (ATT 3.5G and lower) Penta band (850, 900, 1700, 1900, 2100MHz)
  • CDMA: 1XRTT
  • 0.6–2 W maximum transmit power and -112 dBm sensitivity
Data Frequency:
  • Digital alarm inputs and analog alarm set points: real-time
  • Digital runtime inputs: summarized hourly
  • Built-in telemetry and analog inputs: reported hourly
Physical:
  • Operating temperature: -30—70°C
Hardware Options:
  • Digital Input Option Board (PN 650)*
  • Analog Input and Pulse Input Option Board (PN 459)*
  • Pulse Input Option Board (PN 463)*
  • Analog Output and Pulse Input Option Board (PN OP460)*
  • Wet Well Module (PN 651)
  • refer to Option Board and Wet Well Module data sheets for specifications—additional accessories described in the Accessories Catalog
  • *One option board per RTU
Software:
  • Requires Service Package—M110 Series (PN 51X)
  • Optional SCADA Integration OPC Link (PN 586) to client/server HMI
Warranty:
  • 1 year manufacturing and material warranty

You’re Never Alone

You will receive experienced technical support, including access to the people that built the system if needed. This includes comprehensive training, regular webinars, live support during business hours and after-hours support that is always available on a responsive callback basis for emergencies—at no extra charge.
