MISSION's products includes sophisticated software to alert you about site problems. Just move the mouse over the "alarmed" site to see its status.
|
|
|
|
|
|
|
|
 |

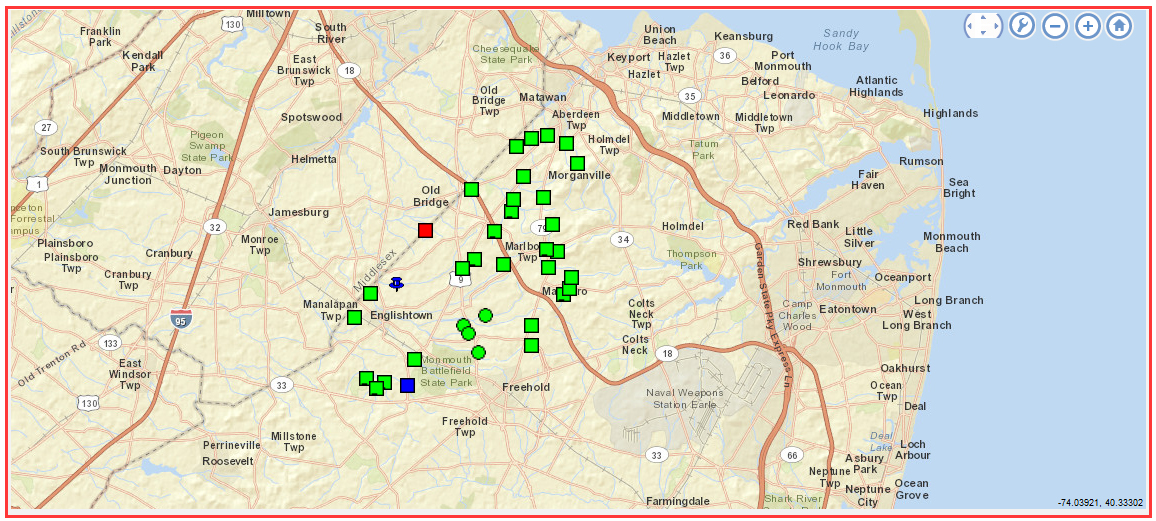

| As soon as the user logs in to the MISSION
website, a map of their devices will be displayed.
The shape of each icon shows what type of device it
is, and icon is also color-coded as to its current
status, The map refreshes every 10
seconds so data displayed is always up to date.
The border color of the map is keyed to the highest
level alarm condition displayed on the map.

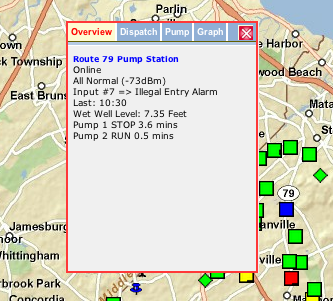

Operation couldn't be simpler: simply move your mouse
over the site in alarm on the map. A small popup will
show all the pertinent data at a glance.
|
 |
|
- Efficiently Direct Corrective Actions
|
|
- Reduce or Eliminate Operator Training
|
|
| |
Feature |
Benefit |
| |
Web based system |
From the office, home or laptop customers can easily
monitor their system status. No special computers or
software to maintain. |
| |
Continuously updated "World at a Glance" |
See alarm status, where field personnel are and pump
run status. Color coded and animated symbols provide
simple identification of status or alarm problems. |
| |
System overlaid on geographic map |
Intuitively see localized problems like area wide AC
outages, high flows or low water system pressure
events. |
| |
“Mouse Over” provides site status detail |
Provides instant access to data while preventing the
main screen from being confusing or cluttered. |
| |
Pop up screens show unit-specific data logs |
Access alarm, runtime, rainfall or site access logs
with a single click. No confusing menus or commands
to remember. Quickly drill down and assess years
worth of data. Perfect for CMOM improvement programs. |
Clicking on the site's icon allows the user to "drill down"
to more specific site information...

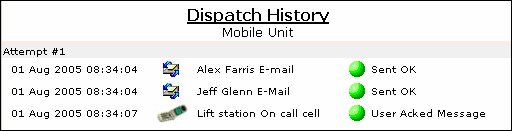

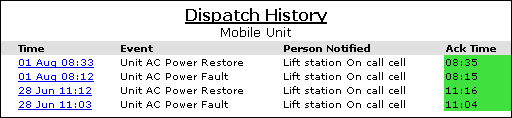

There's even data about who was called about a particular
alarm...
|
|
